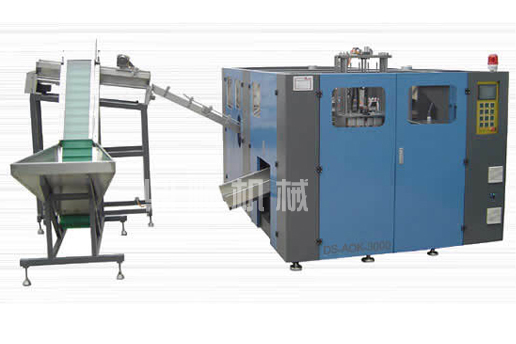

飲料機械輔機（吹瓶機）
AddTime:2012-3-16 10:47:22
|
|
單位 |
AOK-3000-A |
AOK-3000-B | ||
|
成型組
規格
Molding |
合模力Clamping force |
Kn |
16000 |
16000 | |
|
模具行程Clamping stroke |
mm |
80 |
130 | ||
|
拉桿行程Stretching stroke |
mm |
220 |
320 | ||
|
底模行程Base mould stroke |
mm |
40 |
70 | ||
|
瓶子間距Distance between bottles |
mm |
88 |
115 | ||
|
模穴數Cavities |
模穴Cavity |
4 |
4 | ||
|
瓶型
規格
Container |
瓶子最大容量Max. bottle volume |
ml |
700 |
1500 | |
|
最大牙口尺寸Max. jaw size |
mm |
18~38 |
18~38 | ||
|
最大瓶身直徑Max. bottle diameter |
mm |
70 |
90 | ||
|
最大瓶身高度Max. bottle height |
mm |
220 |
320 | ||
|
公轉座數量Revolutions |
pcs |
80 |
80 | ||
|
** 理論產能
|
瓶/小時 |
3500 |
3000 | ||
|
單元
Utilites |
電力規格 Electrical System | ||||
|
總耗電量Total power |
KW |
48 |
56 | ||
|
加熱功率Heating power |
KW |
46 |
54 | ||
|
空壓規格 AIR SYSTEM | |||||
|
操作壓力Working pressure |
kg/cm2 |
7 |
7 | ||
|
低壓耗氧量Oxygen consumption in low pressure |
M3 |
1.6 |
1.6 | ||
|
吹瓶壓力Pressure of blowing |
kg/cm2 |
35 |
35 | ||
|
高壓耗氧量Oxygen consumption in high pressure |
M3 |
2.4 |
3.0 | ||
|
冷凍水規格 CHILLED WATER | |||||
|
操作壓力Working pressure |
kg/cm2 |
3-5 |
3-5 | ||
|
溫度范圍Temperature range |
°C |
12-16 |
12-16 | ||
|
耗氧量Oxygen consumption |
kcal/hr |
- |
- | ||
|
ltr/mm |
520 |
520 | |||
|
冷卻水規格 COOLING WATER | |||||
|
操作壓力Working pressure |
kg/cm2 |
5~6 |
5~6 | ||
|
溫度范圍Temperature range |
°C |
25 |
25 | ||
|
耗氧量Oxygen consumption |
kcal/hr |
156000 |
156000 | ||
|
流量Flux |
ltr/mm |
520 |
520 | ||
|
機臺
Machine |
機臺尺寸 （L X W X H） |
mm |
3250*2150*1800 |
4160*2350*1800 | |
|
機臺重量weight |
Kg |
3500 |
4000 | ||
